​P2 | WATCH DESIGN

PROJECT OVERVIEW

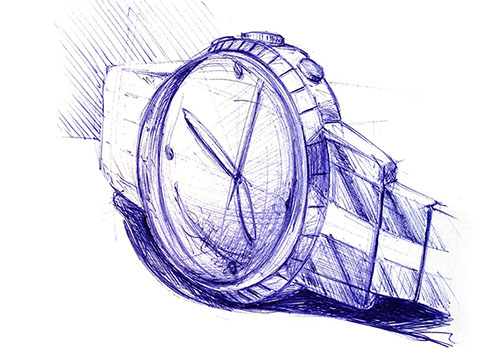

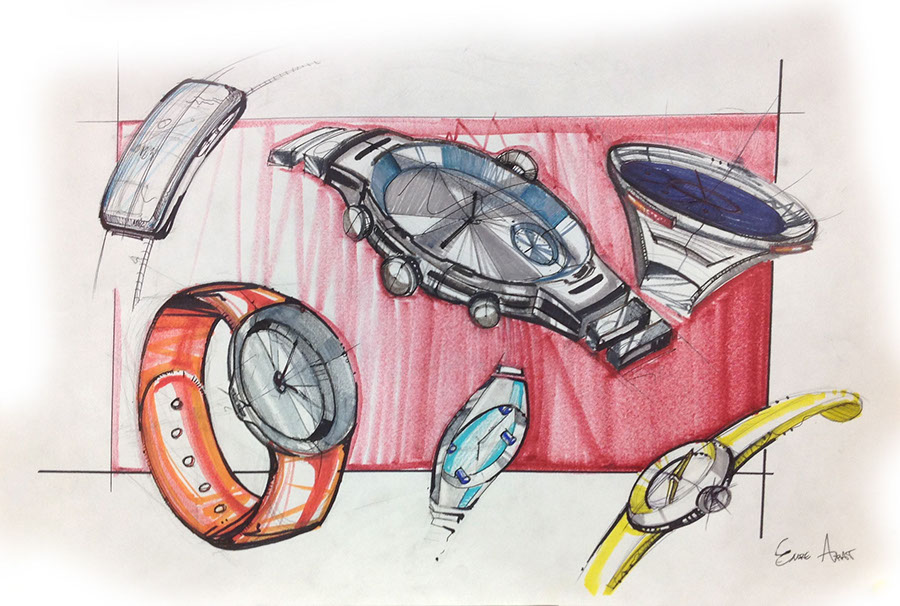

Learning to draw/design Watches

helps students focus on the

rules of horizontal
cylinders or vertical face ellipses.

Choose and a single brand identity
for your product line, ie. Porsche Design,
Diesel, H&M, REI, Oakley, etc. Some
are provided below, but you may choose
your own, but do not invent a brand.

Watches MUST use analog-style
hands with traditional orientations of 12-3-6-9 cardinal time markers.

All presentation sheets will need to be coordinated such that it is clear
they are a complete and unified Brand presentation. Be specific.

​SCHEDULE

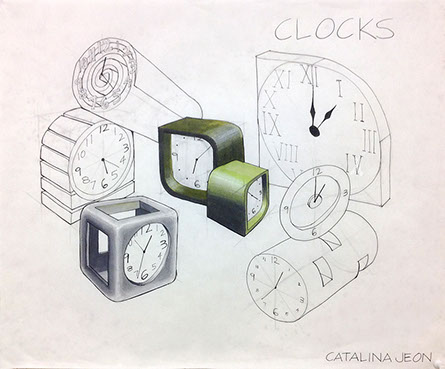

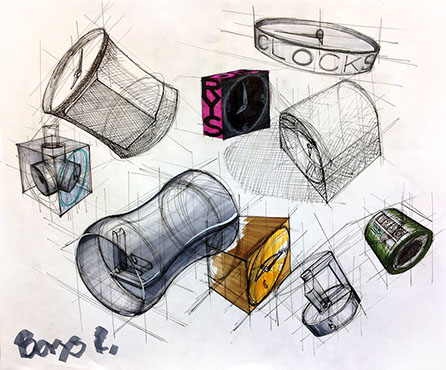

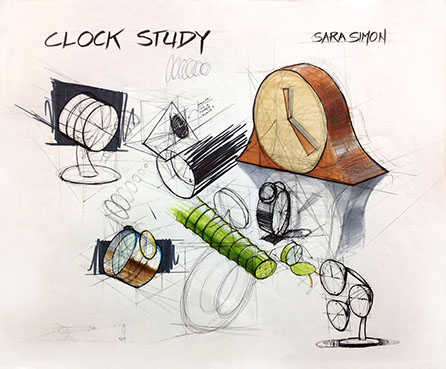

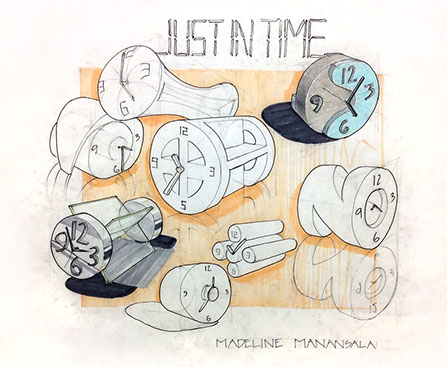

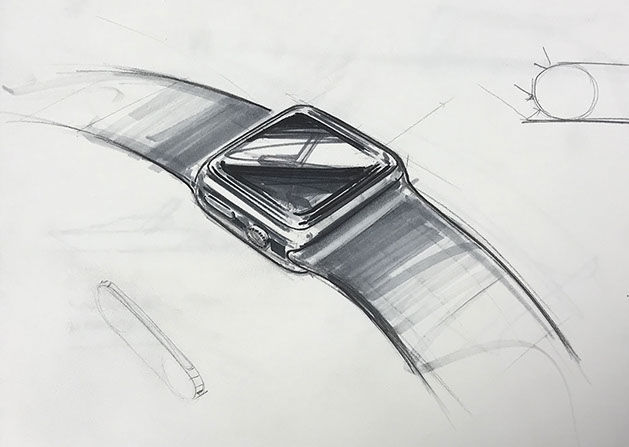

PART 1. EXPLORATION OF FORM GENERATION

Start with the principal geometries (boxes/cubes, ellipses, cylinders, cones, sphericals, etc.), then modify the forms with control to create complexity and interest while obeying the rules of perspective.

Merge/add forms, subtract geometries, round edges, bevel/chamfer
edges, etc.

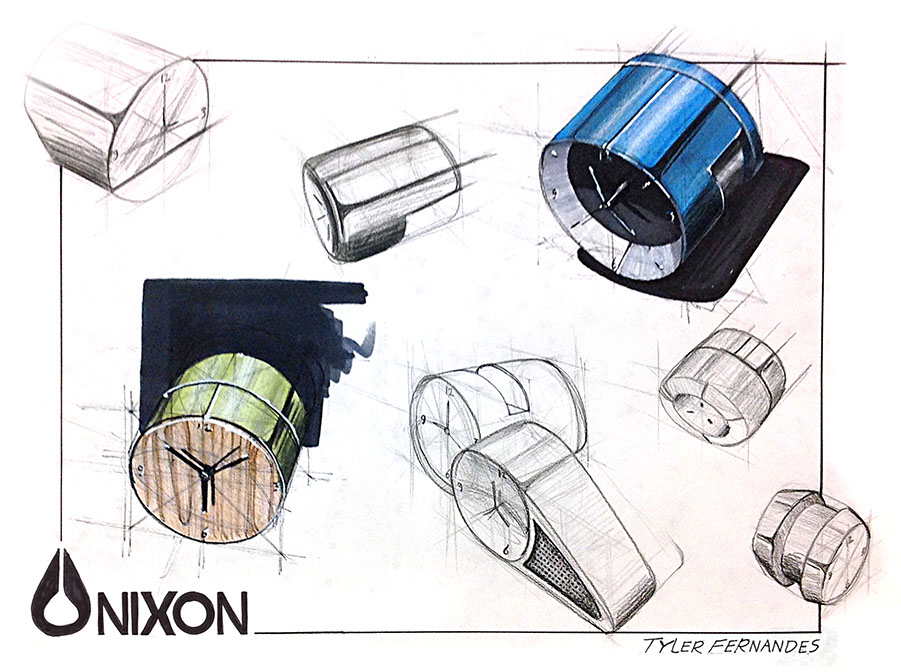

Add "parting" and "separation" lines to articulate surface or material separations. A sofa has cushions, tufting, etc.

Scale is relative. Your objects should make sense relative to each other for your product. If you choose to do headphones and ear buds, make sure the ear buds are in the foreground and drawn large.

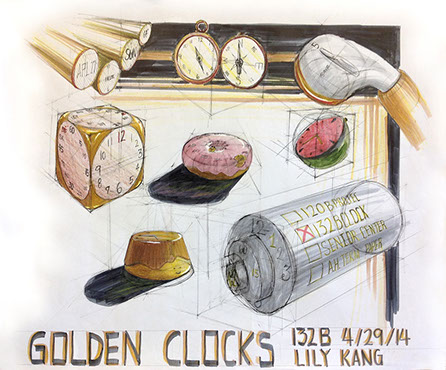

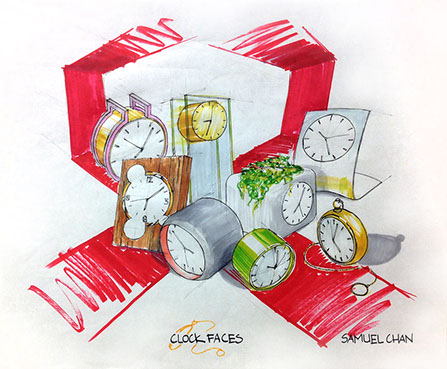

VERTICAL REFLECTIONS

Add the suggestion of reflections as if they are sitting on a polished display counter to add visual interest.

When you render the reflections, be sure to keep them lighter than the objects and do not ink the edges; keeps the viewer's attention on the object.

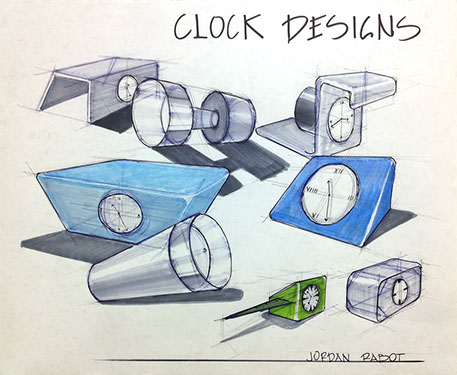

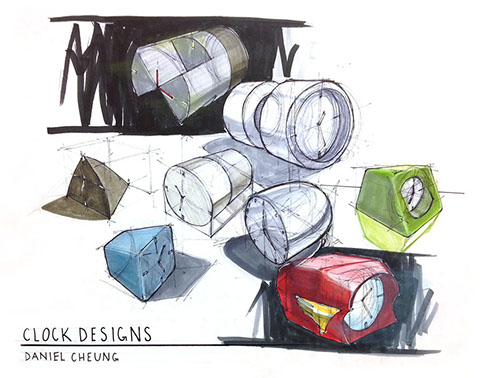

SHADOW CASTING

Use a basic shadow casting method add graphic depth, based on the rules, either to the left or right of the forms.

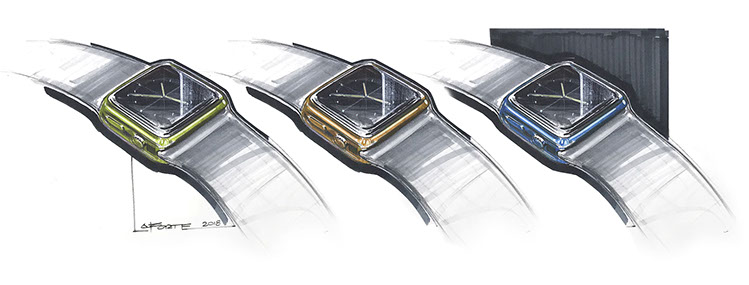

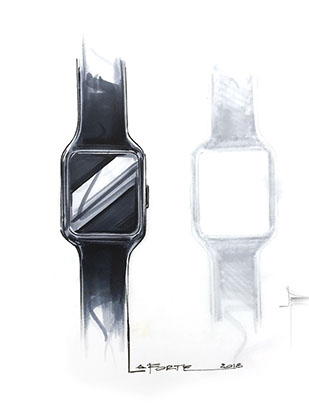

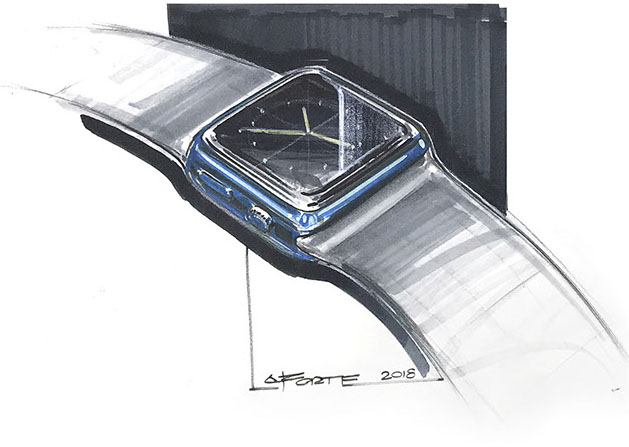

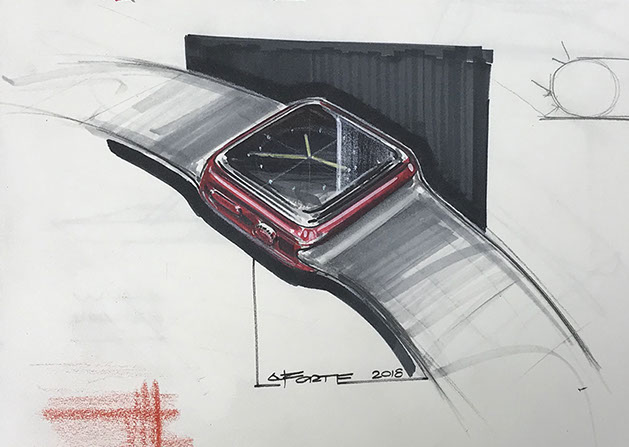

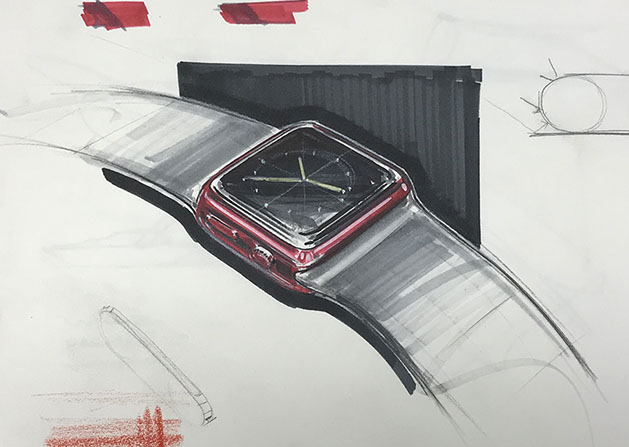

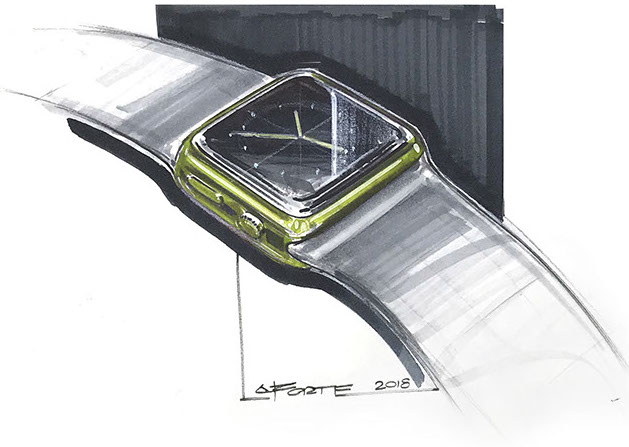

​PART 2. RENDERING & COMPOSITION

Using your markers and add final details and textures as necessary
with Prismacolor pencils.

Render contrasting qualities and/or materiality changes:

Matte vs Polished/Chrome

Opaque vs Transparent

Rough vs Smooth - Remember, rough will affect the profile of the surface

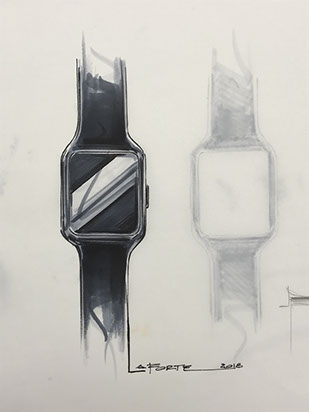

Don't worry about the rough layout lines in your draft studies. When you render much of it will become less noticeable and also adds interest to the drawing. Graphite especially can add warmth to your marker work when done well.

​DELIVERABLES

Three 11x17" sheets.

1. Concept / Inspiration sheet

2. Form Exploration and Study Sketches sheet

3. Final designs sheet

​REFERENCES AND INSPIRATION

See the Materiality Matrix for some material inspiration.

Book, Sketching The Basics

See Cylinders mechanics

See Shadow Casting mechanics

See Info Graphics

Video Demos

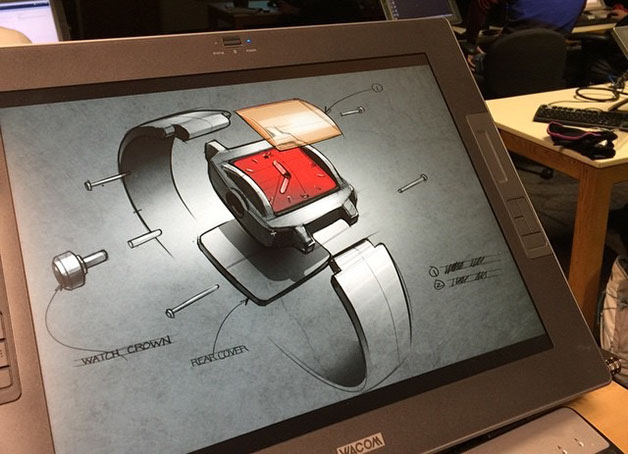

Spencer Nugent, How to Sketch a Wrist Watch - Part 1 / Part 2

ON sketchTV - Shinhan with Touch Markers

Jack Murphy Designs
